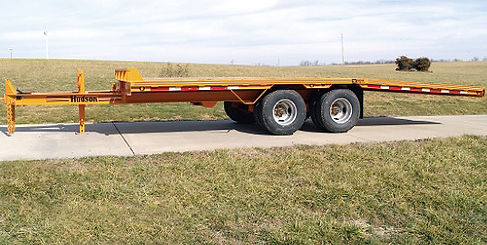

PRO SERIES - HTD20D - 10 TON TILT TRAILER

STANDARD SPECIFICATIONS



GVWR:  25,950 lbs.

​

Empty Weight: 5,950 lbs.



Maximum Payload:  20,000 lbs. w/ adequate hitch load



Overall Length: 28'



Deck Length: 22' (13' Flat w/ 9' taper)



Overall Width: 96"



Deck Width: 96"

​

Deck Height: 35"



Hitch: Adj. 2 1/2" Forged Eye



Hitch Height: 22" to 32"

​

Axles:  (2) 10K Oil Bath Dexter w/ Brakes



Suspension: Multi-Leaf Spring



Brakes:  Electric / Self Adj. 12 1/4" x 3 3/8"



Wheels: 16" x 6"  Dual 8- Bolt



Tires:  ST235/85R16" 10-PR



Jack Capacity:  12,000 lb. w/ Drop Foot



Under Frame:   6" I-Beam @ 25#

​

Upper Deck:   8" I-Beam @ 18#



Crossmembers:  Double 3" Channel @ 7#

​

Side Rails:  6" Channel @ 8.2#



Decking:  2" X 8" White Oak



Tie Downs: Rub Rail w/Stake Pockets



Lights: DOT LED Sealed Rubber-mounted w/ Conduit



Colors: Yellow or Black

OPTIONS



LTBL - Lockable Toolbox Lid

​

6WGN - Gooseneck w/Adjustable 2 5/16" Ball Hitch

​

3"IH - 3" Eye Hitch

​

STSLG - Single 2 Speed Landing Gear

​

8WSD-8' - 8' Wide Stationary Deck (2')

​

8WSD-8' - 8' Wide Stationary Deck (4')

​

8WADL - Additional Deck Length Per 1' (4' Maximum)

​

8W102 - 102" Wide

​

10KAB - Air Brakes w/ABS & ASA

​

MW - Modular Wiring

​

TC - Trickle Charger for Break-A-Way

​

STM - Spare Tire Mount

​

STR - Spare Tire & Rim

​

CO - Colors: Red, Blue, Green, Kubota, & Ditch Witch Orange
